Electric heavy duty transpallets

Description

Heavy-duty electric pallet jacks with high payloads

LOAD CAPACITY: 5 – 100 TONS

Morello specializes in the design and manufacture of heavy-duty electric pallet jacks with an impressive load capacity of up to 100 tons.

These heavy-duty pallet trucks are highly versatile machines that offer the convenience of an ultra-low-level loading platform combined with the functionality of a liftable one.

Thanks to these features, Morello’s electric pallet trucks can safely handle extremely heavy loads without the need for overhead or standard cranes, ensuring operator safety.

All that is required is to position the load on suitable steel pallets (which Morello can custom design for its customers). Then, a pallet jack can be positioned under the pallet to lift and transport it to another location within your facility. Alternatively, you can place the load on supports, such as wooden blocks, allowing the pallet truck to lift the load from them and relocate it to other supports in a different part of your facility.

And all of this can be accomplished with loads of up to 100 tons!

Given the substantial payloads, all Morello’s heavy-duty pallet trucks come equipped with power steering, reducing operator fatigue during operations.

While we can supply electric pallet trucks with a steering bar, most of Morello’s customers prefer to control the pallet jack using a pendant push-button panel or a radio remote control. This minimizes the steering radius and gives operators effortless control over the machine.

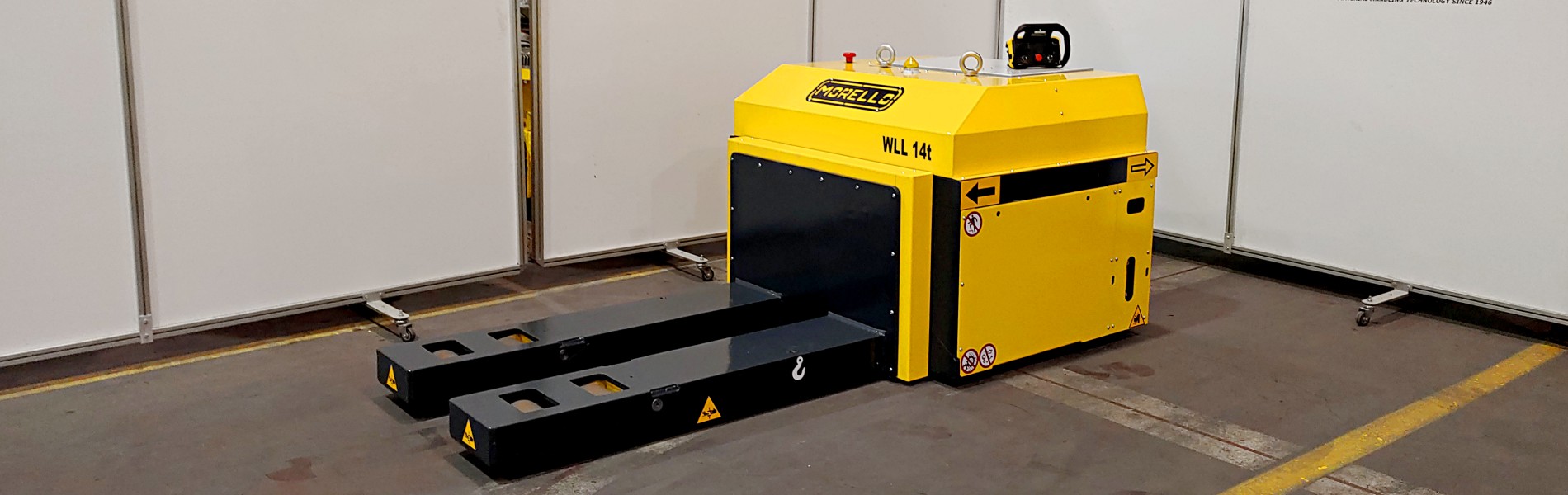

Electric_transpallets_principale

Our heavy-duty electric pallet jacks are battery powered. You can choose between standard lead-acid batteries or lithium batteries. Lithium batteries are often preferred due to their extreme flexibility and extended lifespan. They allow for minimal charging times, as they can be recharged for just a few minutes during breaks or shift changes, quickly restoring full power. The maximum recharging time is approximately 2 hours when the battery is completely depleted.

Li-ion-battery-250x190

Morello offers a range of pallet jack models with standard sizes and features, as well as fully customized options. These can include two forks or a single loading bed, specific lengths and widths, variable travel speed, climbing capabilities, and wheels designed for uneven floors, among other features.

On request:

We can supply our heavy-duty electric pallet jacks in AGV version (automated guided vehicles). We can provide individual automatic pallet trucks or entire fleets, complete with a management system and various navigation technologies, from the simplest to the most advanced.
Automatic trolleys are gaining popularity in all sectors and might be the solution you are looking for. Visit our section dedicated to AGVs.

We can also manufacture ATEX- and IECEx-certified heavy-duty pallet trucks suitable for use in explosive environments, such as paint booths, refineries, FPSO/FLNG vessels, and offshore platforms. Our pallet jacks for ships and oil platforms are designed to work in offshore environments and feature specific paint-coating cycles and electrical components.

Technical characteristics

Capacity
from 1 ton to 100 tons
Dimensions
on request
Steering systems
± 90° steering
See the technology
Power supply
battery (electric grid or diesel generator on request)
See the technology
Travel speed
on request (from 1 km/h to over 3 km/h)
Drive motors
AC motors (hydraulic motors on request)
See the technology
Steering motors
AC motors (hydraulic motors on request)
See the technology
Command
control tiller, pendant panel, remote controller, footplate
See the technology
Kind of wheels
polyurethane (solid rubber on request)
Lifting stroke
50 ÷ 100 mm (others on request)
Kind of battery
lead acid, gel, lithium, pure lead
Battery life
on request (from 1500 m to over 15000 m)
Climbing ability
on request (from 1% to over 15%)
Operating environment
indoor, outdoor, offshore
Safety devices
laser scanners, sensitive bumpers, ultrasonic sensors
See the technology
Industry 4.0 ready
on request
See the technology
Hazardous areas conform (EX)
on request (ATEX, IECEx, NEC 500)
See the technology
Automatic version – AGV
on request
See the technology
